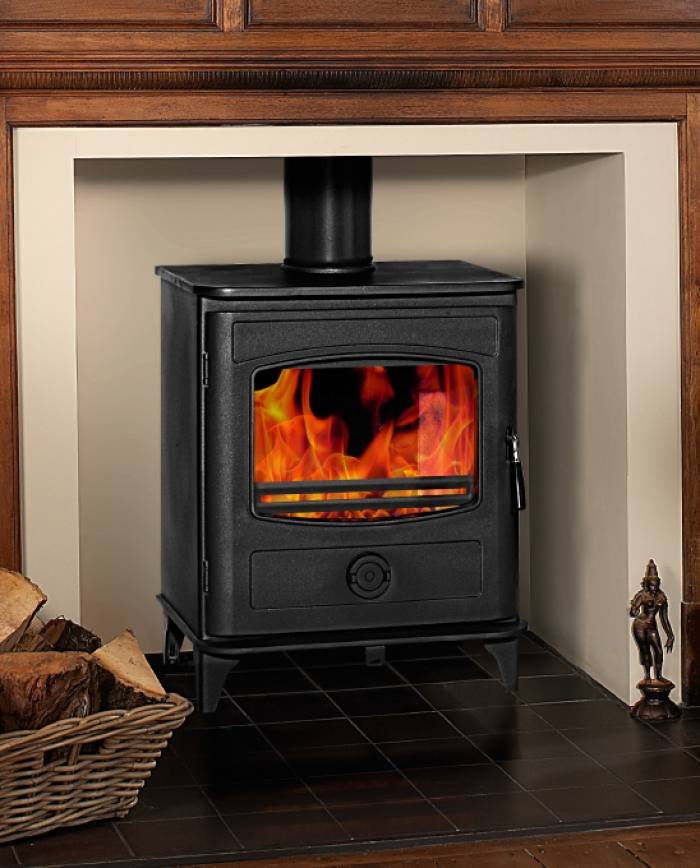

Graphite 10

  • Dealer Price
  • Regular price €1.195,00
  • Will be in stock after

The largest stove in the Graphite range, the Ten not only has a powerful visual presence in a large fireplace but also delivers an equally powerful and effective 10kW of heat output for the larger living room. It is also exceptionally clean burning, thanks to its pre-heated tertiary air system. This wrings out every last calorie of heat from the fuel load to make it go further and make the stove more economical to run. This, combined with the Airwash system, all helps to keep the Graphite Ten’s large picture window beautifully clean so you can enjoy a great view of its big fire.

  • Data from CE EN13240 tests in the UK by Kiwa Gastec
  • This Product is registered on the HARP Database
  • Clean-burn pre-heated tertiary air system maximises efficiency
  • Pre-heated Airwash System to keep your glass cleaner
  • Choice of top or rear 150 mm (6”) flue outlet
  • Heavy duty robot-welded steel body with soft-edged 16 mm thick lid
  • Longer-lasting finest quality cast iron door and fire back-plate
  • Optional external air supply kit for post-2008 home installations
  • Five Year Extended Warranty from one of the world’s leading stove makers


Output 10kW
Efficiency 80.3% (Net)
Airwash System Pre-heated
Construction Steel & cast iron
Flue Outlet Top or Rear
Flue Size 150mm/6"
Flue Type Open
Grate Type Multi-fuel
Guarantee 5 Years
Defra Approved No
Additional Finishes None
Ideal Log Length Up to 40cm
Weight -
Air Vent Required Yes
Direct Air Yes (Secondary and Tertiary only)
graphite 10 stove dimensions
